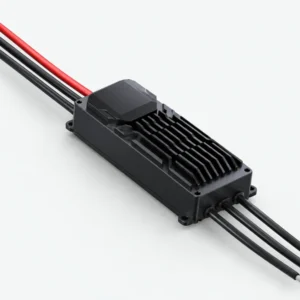

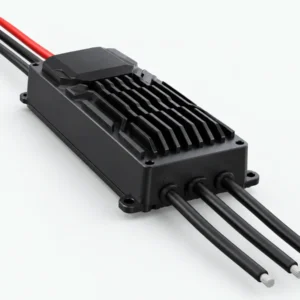

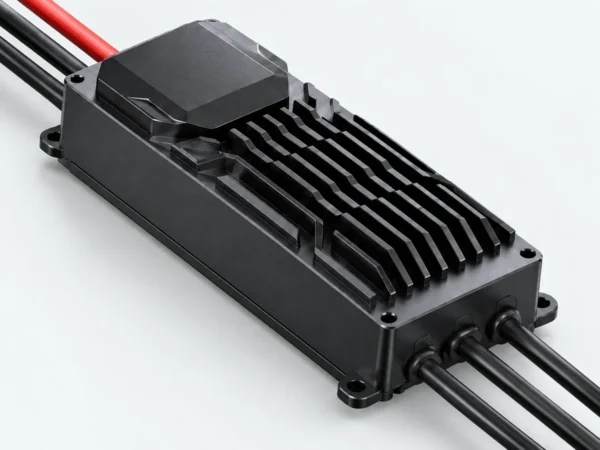

H110A 14S FOC Electronic Speed Controller
The H110A 14S FOC is a professional UAV electronic speed controller with CAN and PWM control references. Confirm voltage, current conditions, protocol, protection level and matching motor before inquiry.
H110A 14S FOC electronic speed controller identifies the exact model reference described on this page. Use the documented values below to compare the required configuration; similar appearance does not prove compatibility.
DroneNook coordinates product inquiries and supplier communication for selected civilian drone parts. This page is a selected product reference, not a claim of stock, authorization or universal compatibility.
H110A 14S FOC Electronic Speed Controller Overview
The H110A 14S FOC is a professional UAV electronic speed controller with CAN and PWM control references. Confirm voltage, current conditions, protocol, protection level and matching motor before inquiry.
Browse related ESCs product references or review the broader DroneNook products directory.
H110A 14S FOC specifications
| Input | 18–63 V / 6–14S |
|---|---|
| Continuous current | 50 A under the manufacturer’s stated conditions |
| Peak current | 110 A for 15 seconds at 7 m/s airflow and 28°C |
| Communication | CAN |
| Throttle inputs | CAN + PWM |
| Protection | IP55 standard; IP67 is described as a customizable option |
Values retain the units and stated conditions from the manufacturer or official-store reference. Final technical confirmation belongs to the responsible manufacturer or supplier for the requested configuration.
H110A CAN PWM

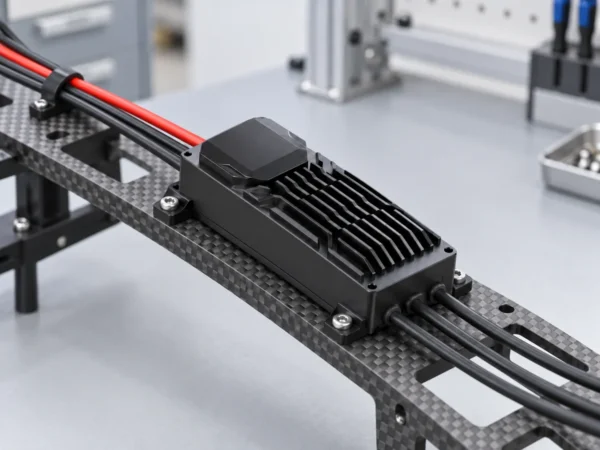

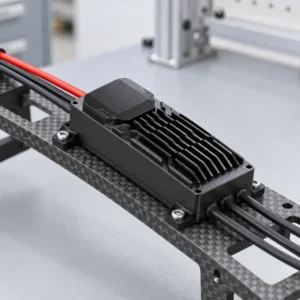

Confirm the motor, propeller, battery voltage, current margin, cooling, firmware or protocol requirements and physical installation. IP67 must not be assumed unless it is explicitly quoted as a customized configuration.
Included and Not Included
H110A package contents
Confirm the ESC body, power leads, three motor-phase leads, signal cable and mounting parts. Cable length, connector termination and customized protection must be written into the requested configuration.
Packaging and Supply Information
Pricing is not published on this inquiry website. Packing unit, minimum quantity, availability, lead time, destination and delivery terms are confirmed for each request. Send the exact model, requested quantity, destination country and required date.
Before Requesting This Part
What should the buyer confirm?
Confirm the exact model or SKU, revision or variant, application, electrical and mechanical interfaces, required quantity, package scope and delivery destination. Attach photographs, drawings or a parts list when the identification is uncertain.
H110A quotation
Use the Inquiry List to submit this product with quantity and optional files, or contact DroneNook for a model-reference question.
Technical Reference
Technical data on this page is provided as a model-identification reference. Confirm the final specification, package scope and supply terms in the quotation before ordering.
